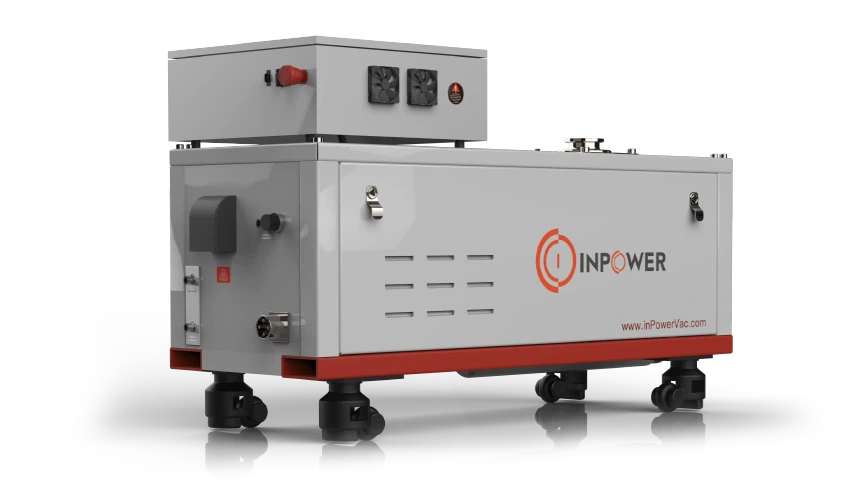

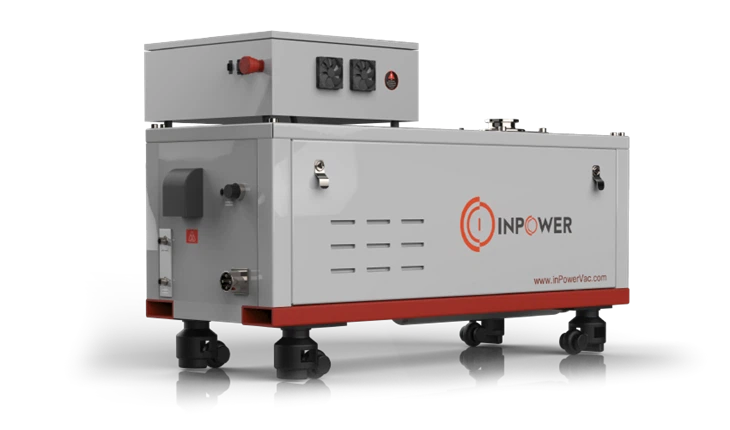

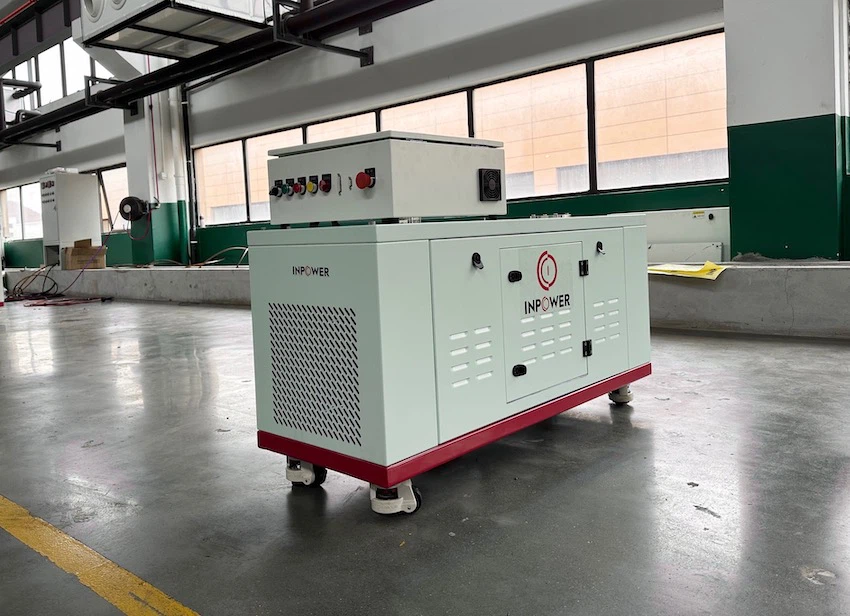

Inpower pharmaceutical vacuum pump One of the few high vacuum dry screw vacuum units worldwide
Technical parameters:
|
Model |
GXR110 |
GXR180 |
GXR320 |
GXR400 |
|
|
SPEED(50Hz) |
m³/h |
110 |
180 |
320 |
400 |
|
Ultimate Vacuum(50Hz) |
Pa |
≤1 |
≤1 |
≤1 |
≤1 |
|
POWER(50Hz) |
Kw |
4.5 |
7.5 |
7.5 |
7.5 |
|
Forced internal circulation cooling |
GXR is equipped with a forced internal circulation cooling device, with a maximum pump body temperature of<50 ° C and a maximum motor temperature of<35 ° C |
||||
|
Voltage and frequency |
Adapt to global voltage and frequency |
||||
|
Inlet/Outlet interface |
Customizable flange interface/KF interface |
||||
|
Water |
Pressure(MPa) |
0.2～0.4 |
|||
|
Flow L/min |
3～5 |
||||
|
Tem (℃) |
10～30 |
||||
|
N2 |
Pressure(MPa) |
0.05～0.1 |
|||
|
Flow L/min |
6～20 |
||||
|
Noise |
dB |
≤68 |
≤68 |
≤70 |
≤70 |
|
Weight |
Kg |
280 |
360 |
360 |
420 |
|
Monitoring and Control |
Control panel/vacuum digital display/temperature monitoring/current monitoring/fault alarm/other network services |
||||
|
Model |
GXR180/800 |
GXR180/1300 |
GXR180/1800 |
GXR450/2600 |
|
|
SPEED(50Hz) |
m³/h |
800 |
1300 |
1800 |
2600 |
|
Ultimate Vacuum(50Hz) |
Pa |
≤0.1 |
≤0.1 |
≤0.1 |
≤0.1 |
|
POWER(50Hz) |
Kw |
7.5 |
7.5 |
9 |
15 |
|
Forced internal circulation cooling |
GXR is equipped with a forced internal circulation cooling device, with a maximum pump body temperature of<50 ° C and a maximum motor temperature of<35 ° C |
||||
|
Voltage and frequency |
Adapt to global voltage and frequency |
||||
|
Inlet/Outlet interface |
Customizable flange interface/KF interface |
||||
|
Water |
Pressure(MPa) |
0.2～0.4 |
|||
|
Flow L/min |
0.1 |
||||
|
Tem (℃) |
3～5 |
||||
|
N2 |
Pressure(MPa) |
10～30 |
|||
|
Flow L/min |
0.05～0.1 |
||||
|
Noise |
Pressure(MPa) |
6～20 |
|||
|
Weight |
dB |
≤70 |
≤70 |
≤72 |
≤72 |
|
Monitoring and Control |
Kg |
600 |
720 |
800 |
1350 |
|
SPEED(50Hz) |
Control panel/vacuum digital display/temperature monitoring/current monitoring/fault alarm/other network services |
||||
Characteristic：
(1)Advanced shaft sealing technology
The innovative technology housed inside the GXR protects the gearbox from contamination and keeps the vacuum space free of oil. The extracted gas enters the pump chamber and is discharged cleanly in a completely oil-free environment without contamination.
(2)Corrosion preventive
The GXR series products adopt corrosion-resistant technology, which is more reliable in corrosive environments. Currently, we can provide materials such as coating technology, Titanium, 2205, Molybdenum, etc.
(3)Advanced pumping mechanism design
The GXR is a silent powerhouse; the updated technology and design ensures low vibration and quiet operations ideal for your sensitive work environments. The enhanced screw-type rotor results in gradual compression for improved thermal control and optimised pumping at every stage of your process.
(4)Can provide customized solutions for your application
The GXR series can be customized to provide optimal performance in various applications. From lightweight to medium-sized applications, we can help you design and apply one or more sets to form a complete vacuum system to meet your precise requirements.
(5)high reliability
Made from Mazak equipment processing and manufacturing, with 23 years of experience in Dry screw manufacturing, operating over 100000 products worldwide
Inpower pharmaceutical vacuum pump Application area:
Lithium Ion Batteries
Freeze Drying
Solar Cell Manufacturing
Fine Chemicals
Thin Film Deposition
Pharmaceuticals
Automotive Coating
Industrial Glass Coating
Heat Treatment
Brazing
Plastic Extrusion
