Hey there! As a supplier of Rotary Vane Vacuum Pumps, I've seen firsthand how important it is to keep these machines in top - notch condition. One key aspect of that is calibration. In this blog, I'll walk you through the process of calibrating a rotary vane vacuum pump, so you can ensure it's working at its best.
Why Calibration Matters
Before we dive into the how - to, let's talk about why calibration is such a big deal. A well - calibrated rotary vane vacuum pump operates more efficiently. It can reach and maintain the desired vacuum level, which is crucial for many industrial and scientific applications. Whether you're using a Single Stage Rotary Vane Pump for simple tasks or a Two Stage Rotary Vane Pumps for more complex operations, calibration helps prevent issues like poor performance, increased wear and tear, and even premature failure.
Pre - Calibration Checks
First things first, you need to do some pre - calibration checks. Safety should always be your top priority. Make sure the pump is turned off and unplugged. You don't want any accidental starts while you're working on it.

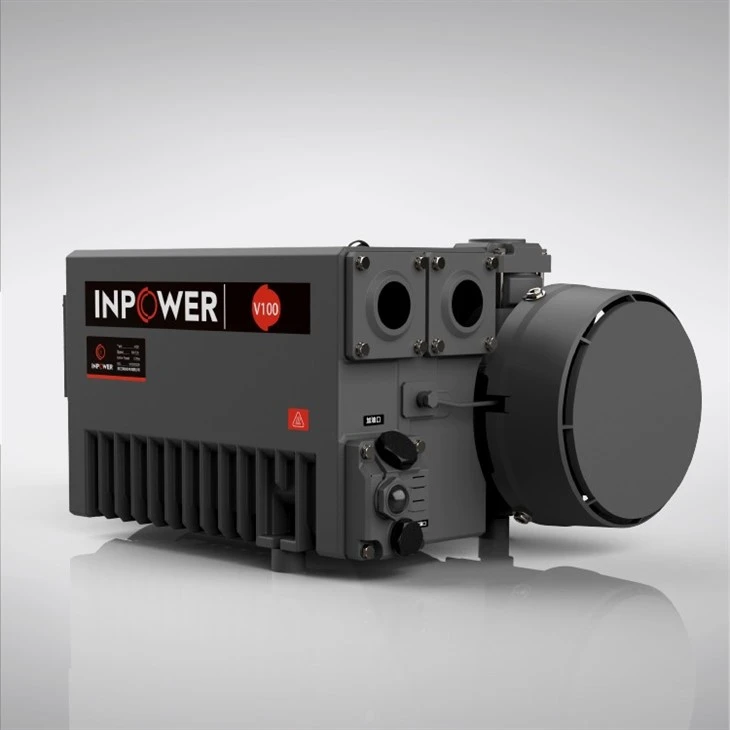

Next, take a good look at the pump. Check for any visible signs of damage, like cracks in the housing, loose fittings, or worn - out parts. If you spot any issues, it's a good idea to address them before you start calibrating. You should also check the oil level. Most rotary vane vacuum pumps rely on oil for lubrication and sealing. If the oil is low or dirty, it can affect the pump's performance. For a Portable Oil Vacuum Pump, this step is even more critical as they are often used in different environments.
Tools You'll Need
To calibrate your rotary vane vacuum pump, you'll need a few tools. A vacuum gauge is a must - have. It will help you measure the vacuum level accurately. You'll also need a screwdriver or a wrench, depending on the type of pump and the adjustments you need to make. Some pumps may require a specialized calibration tool, so it's a good idea to check your pump's manual.
Step - by - Step Calibration Process
Step 1: Connect the Vacuum Gauge
The first step in the calibration process is to connect the vacuum gauge to the pump. Make sure the connection is tight and secure. A loose connection can lead to inaccurate readings. Once the gauge is connected, you can turn on the pump and let it run for a few minutes to reach a stable vacuum level.
Step 2: Check the Initial Vacuum Reading
After the pump has been running for a bit, take a look at the vacuum gauge reading. Compare this reading to the pump's specifications. If the reading is significantly different from what it should be, then you'll need to make some adjustments.
Step 3: Adjust the Vacuum Level
Most rotary vane vacuum pumps have an adjustment mechanism. This could be a screw or a valve that you can turn to increase or decrease the vacuum level. Start by making small adjustments and then check the gauge again. It's important to make these adjustments slowly and carefully. If you make too big of a change at once, you could over - or under - calibrate the pump.
Step 4: Repeat the Process
Calibration is often an iterative process. You may need to make several adjustments and check the gauge multiple times to get the vacuum level just right. Keep making small changes and re - checking the reading until you reach the desired vacuum level.
Step 5: Final Checks
Once you think you've calibrated the pump correctly, let it run for a little longer and keep an eye on the gauge. Make sure the vacuum level remains stable. If it starts to fluctuate, you may need to make some more adjustments.
Post - Calibration Maintenance
After you've successfully calibrated your rotary vane vacuum pump, it's important to do some post - calibration maintenance. Check all the connections again to make sure they're still tight. You should also clean the pump and change the oil if necessary. Regular maintenance will help keep your pump in good working condition and extend its lifespan.
Troubleshooting Common Calibration Issues
Sometimes, you may run into issues during the calibration process. If the vacuum level won't reach the desired value, it could be due to a leak in the system. Check all the connections and seals for any signs of leakage. You can use a soapy water solution to check for leaks. If you see bubbles forming, then you've found the leak.
Another common issue is a fluctuating vacuum level. This could be caused by a worn - out vane or a problem with the oil. Inspect the vanes for signs of wear and replace them if needed. Also, make sure the oil is clean and at the right level.
Conclusion
Calibrating a rotary vane vacuum pump is not as complicated as it may seem. By following these steps and doing regular maintenance, you can keep your pump running smoothly and efficiently. Whether you're using a single - stage, two - stage, or portable oil vacuum pump, proper calibration is key to getting the most out of your equipment.
If you're in the market for a new rotary vane vacuum pump or need any assistance with calibration or maintenance, don't hesitate to reach out. We're here to help you find the right pump for your needs and ensure it performs at its best.
References
- Manufacturer's manuals for rotary vane vacuum pumps
- Industry best practices for vacuum pump calibration and maintenance
